BIQU BIGTREETECH BTT SKR PICO V1.0 Mainboard

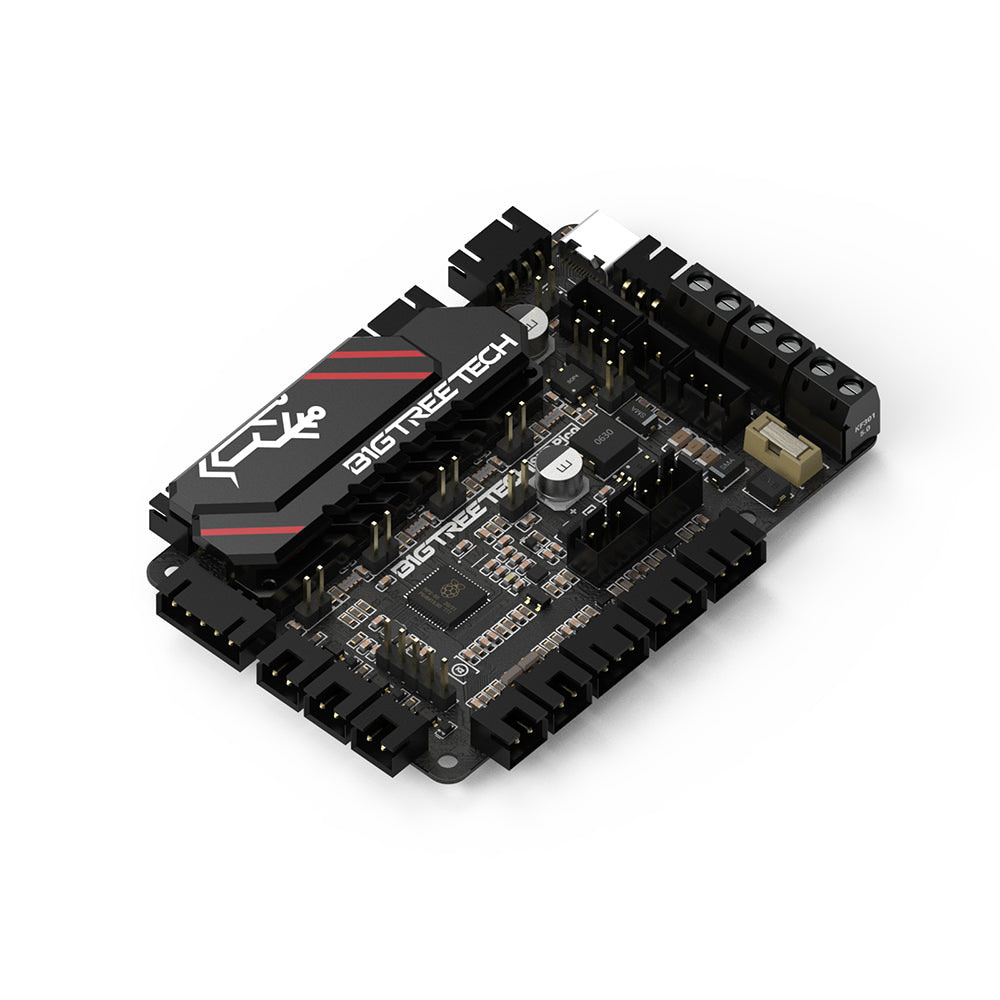

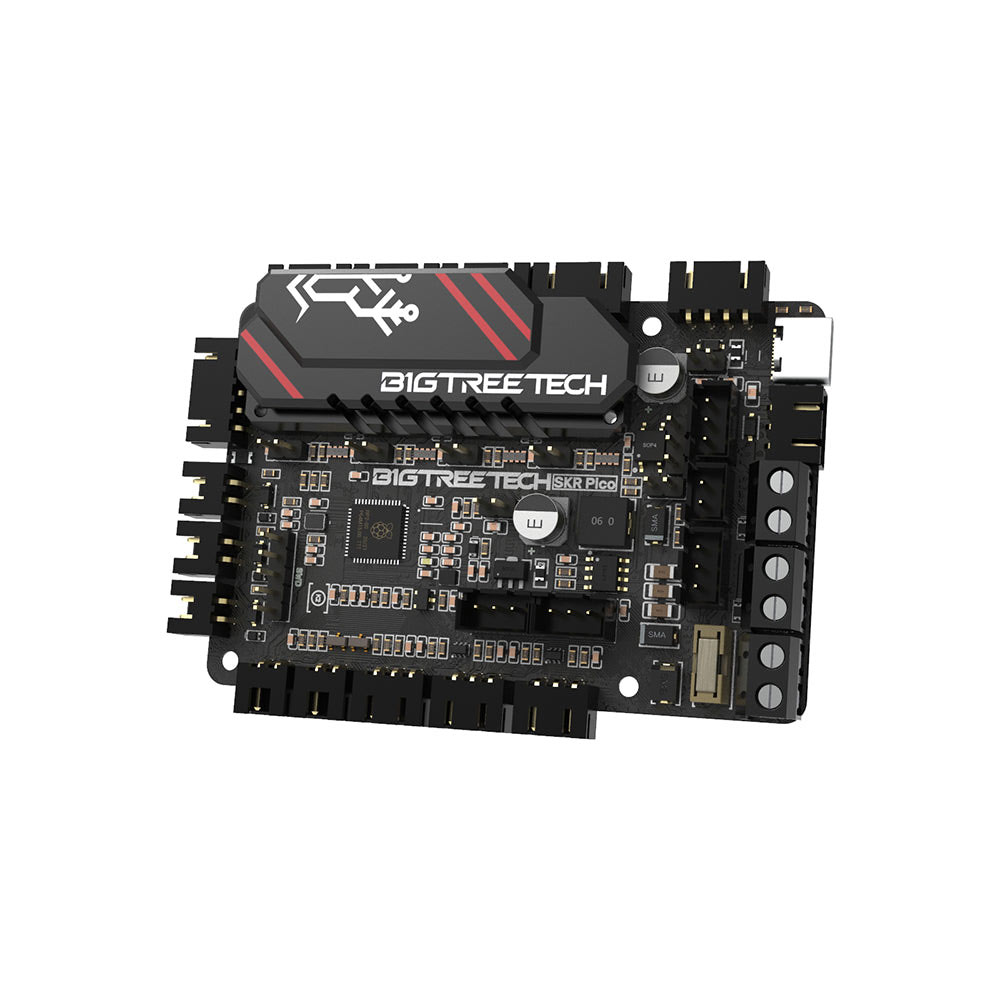

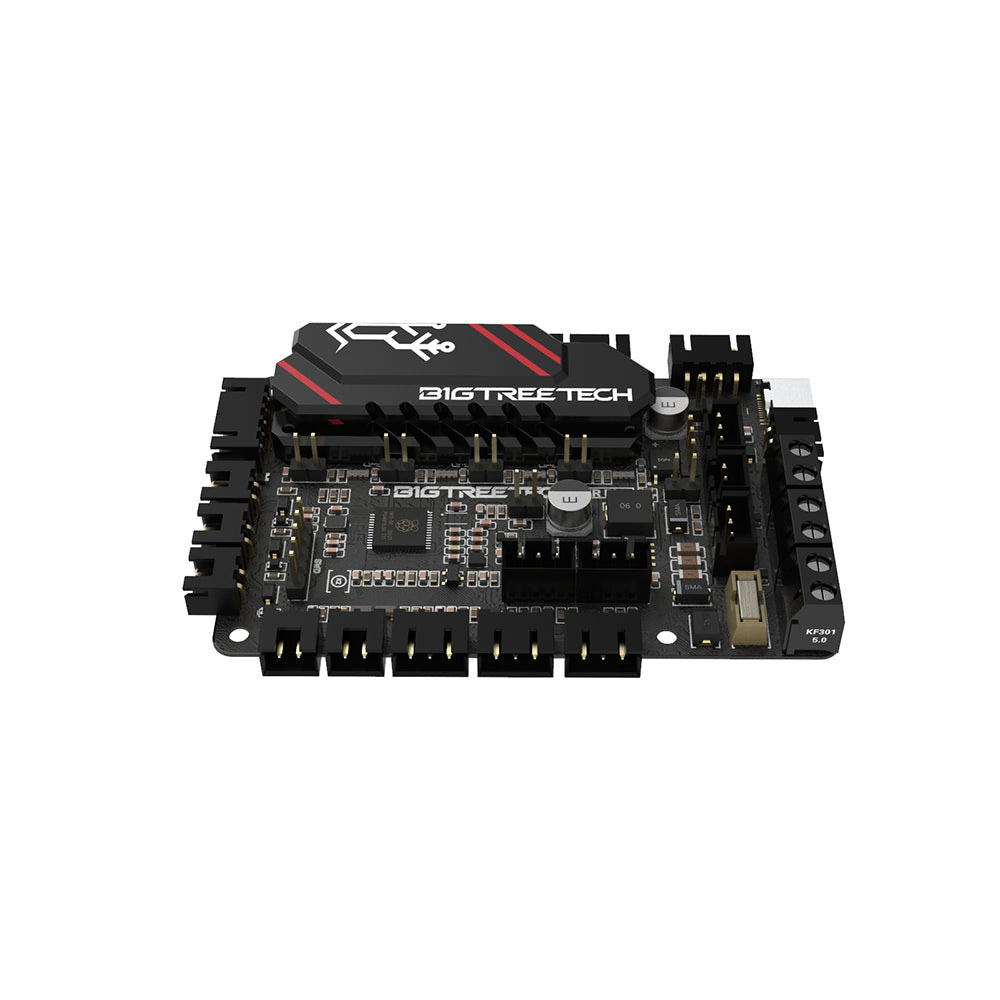

BIGTREETECH BTT SKR PICO 1 BIGTREETECH BTT SKR PICO 2 BIGTREETECH BTT SKR PICO 3

BIGTREETECH BTT SKR PICO V1.0 Mainboard

kompatibel zu Raspberry PI / für Voron V0 / V0.1

Fragen zu diesem Artikel? Weitere Artikel aus dieser Kategorie
39,90 € *
Inhalt 1 Stück
inkl. 19% MwSt. zzgl. 4,95 € Versand
39,90 € *
Inhalt 1 Stück
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/6mi3i5bhx3zt/plugin/20/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "Ae8FP9bvO1ufpUzfp9DkpRunNIaBm4zpOJXMB11Cdgixzu41pACZKItTmATFBiWch9Gg9glr0xQ4P5jq"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMWZmOTM0ZTIxYTk1MTk2OTNlNDZmNGY4MjRjZDU5ZjcwOWJhN2RlZmU4MWEyZjJhYjc3NzQ0MzQxN2FlYTc2ZHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMThUMDc6MDk6NDIuMTI2WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU1ReWNHTHQ2OWZCLVA2cGJJWTdLVUVPM3FiampacHNIamhmaVZMY00wMW15X284Y012ZlU3clVkbWpnMnpKQTlaeTdjLUZOVGk2XzZxV0o2UG81SmdWNFhTaV9nIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "de_DE"); document.body.appendChild(script); }

BTT SKR Pico V1.0 is a customized motherboard designed for the VORON V0 printer.

Key Features:

  • Brand-new Version for Voron V0& V0.1. Featured with Raspberry Pi ARM Cortex- Mo+ MCU PR2040, Bigtreetech SKR Pico V1.0 upgraded on ID design, which coexists of stylish appearance and excellent performances, ideal choice for Voron players. The fuse kit consists of fuse and holder, which enables easy disassembling and installation. Type-C interface allows for main control communication.

  • Perfectly match With Raspberry Pi. With the Raspberry Pi board frame, Raspberry Pi can be perfectly installed on BTT SKR Pico V1.0, saving internal space. The unique lateral design of SKR Pico‘s seat perfectly matches the space characteristics of the Voron V0 and V0.1 machine that needs to be fixed to the motherboard longitudinally.

  • Mute Printing & Premium Capacitors. Featured with TMC2209 mute driver UART mode, SKR PICO V1.0 supports mute 3D printing. The main version of the chip capacitor (MLCC) adopts high-quality Murata capacitors to enhance the product's quality.

  • Upgraded Heat Dissipation. Upgrade the design of the heat sink and increase the heat dissipation area. Increased controllable fan enables to lower the temperature of the whole machine when the it's working, effectively solving problems related to heat dissipation, and improving on the heat dissipation.

Parameters of motherboard：

  • External size: 85*56mm
  • Installation size: Please refer to BTT SKR Pico V1.0-SIZE.pdf
  • Board layer: 4
  • MCU: ARM Cortex-M0+ RP2040
  • Power input: DC 12/24V
  • Logic voltage: 3.3V
  • Motor driver: UART mode of the on-board TMC2209
  • Motor driver interface: X, Y, Z1, Z2, E
  • Temperature sensor interface: TH0, THB, 2-way 100K NTC (RTD)
  • Communication with Raspberry Pi (Raspberry Pi): TYPE-C, UART.

If you want to use a motor drive current of more than 0.8A, we recommend to use a active cooling of the drive chip and the motherboard.

More informations you will find at: https://github.com/bigtreetech/SKR-Pico
