Micro Swiss Micro Swiss M2 Hardened High Speed Steel High Flow 2.85mm Nozzle / 0,4mm
1

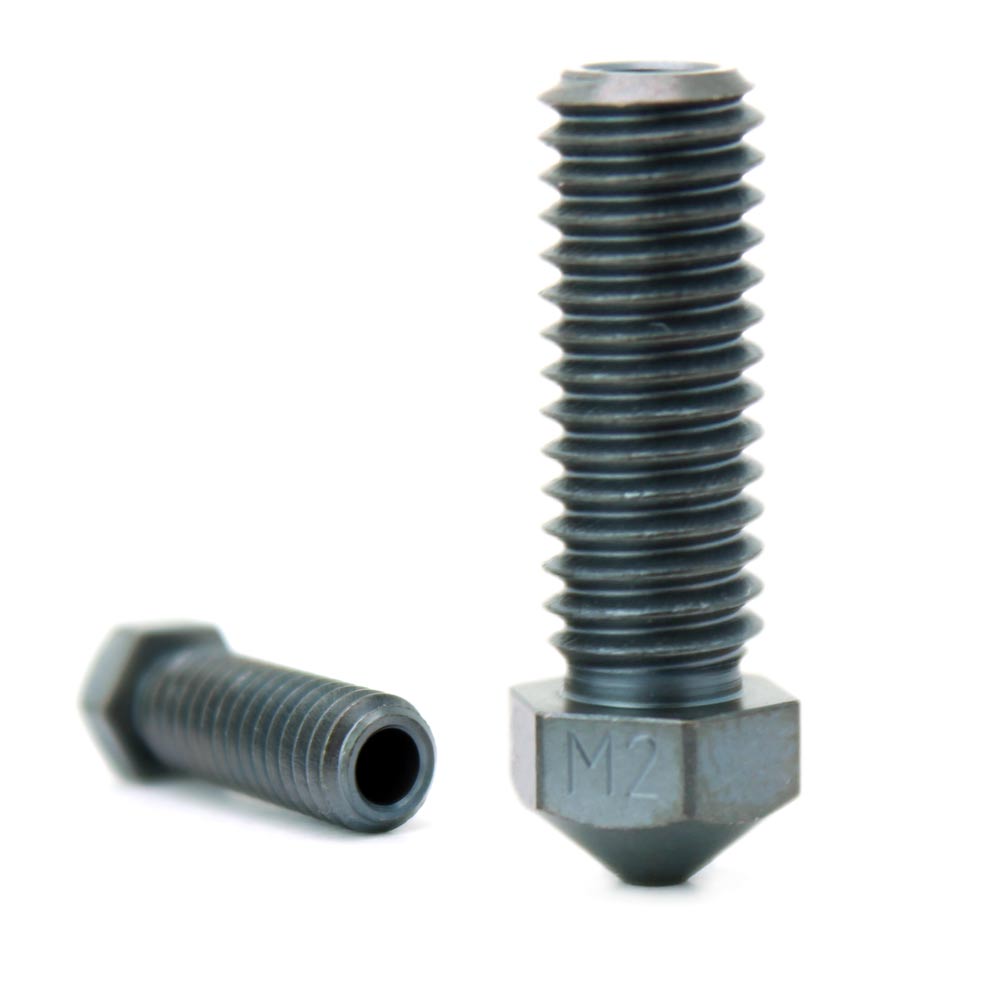

Micro Swiss M2 Hardened High Speed Steel High Flow 2.85mm Nozzle / 0,4mm

M2 nozzles are designed for high temperatures, abrasion resistance and with superior non-stick properties

2.85mm / 0.25mm, 0.4mm, 0.6mm, 0.8mm, 1.0mm

Any questions about this article? More articles in this category
€ 21.90 *
Content 1 piece
incl. 19% VAT excl. 4,95 € shipping
€ 21.90 *
Content 1 piece
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/6mi3i5bhx3zt/plugin/20/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "Ae8FP9bvO1ufpUzfp9DkpRunNIaBm4zpOJXMB11Cdgixzu41pACZKItTmATFBiWch9Gg9glr0xQ4P5jq"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzI5Zjg5YjZiY2E5OTUwMmRhMTBjYWUyYTVmMjQ0NmM0MTQ1YzEyOTM5MTdlOWJkY2NjMmNmMDYwYjQ0NjI1Y3xtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMzBUMDA6MzI6MjUuOTM3WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU4xM3BVNHAybW1ZQUo5Q3hMUmt3dDNFM2JsRzhxaVlsbTNxTWdXLVNzWHp6WXB2a3dxYTlZOGNqSjRvWEx1ZWZOdHFSbkdzVGE3UG9WTHlyNUV2MzM4QVdpeHlBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }

This is Micro Swiss Plated Wear Resistant Nozzle for Volcano Hotend 1.75mm Filament. It is made from a 360 brass base material and plated with TwinClad XT coating. TwinClad XT is a nickel composite coating designed for very low friction. It offers one of the lowest coefficient of friction, better than nickel with PTFE codeposit. This coating is also very hard and abrasion resistant. If you are working with abrasive Carbon Fiber, Stainless Steel, wood filled or any other metal filled filaments, this will greatly improve the life of your nozzle.

The M2 nozzles are designed for high temperatures, abrasion resistance and with superior non-stick properties. Nozzles are machined from M2 high speed steel, hardened and tempered to 68 HRC, plated with Electroless Nickel Plating, and coated with WS2 coating.

The M2 nozzle can operate up to 450°C without losing the hardness.

  • M2 Hardened High Speed Steel: 68 HRC
  • Plating: Electroless Nickel
  • Plating Hardness: 70-73 HRC
  • Coating: WS2 coating
  • Coefficient of friction: 0.035

Filament diameter:

  • 2.85 mm

Size available:

  • 0.4 mm
  • 0.6 mm
  • 0.8 mm

Fits:

  • E3D Volcano HotEnd 2.85mm Filament
  • Threads
    M6x1.0
  • Thread length
    16 mm
  • Overall length
    21 mm
  • Filament size
    2.85 mm
