New

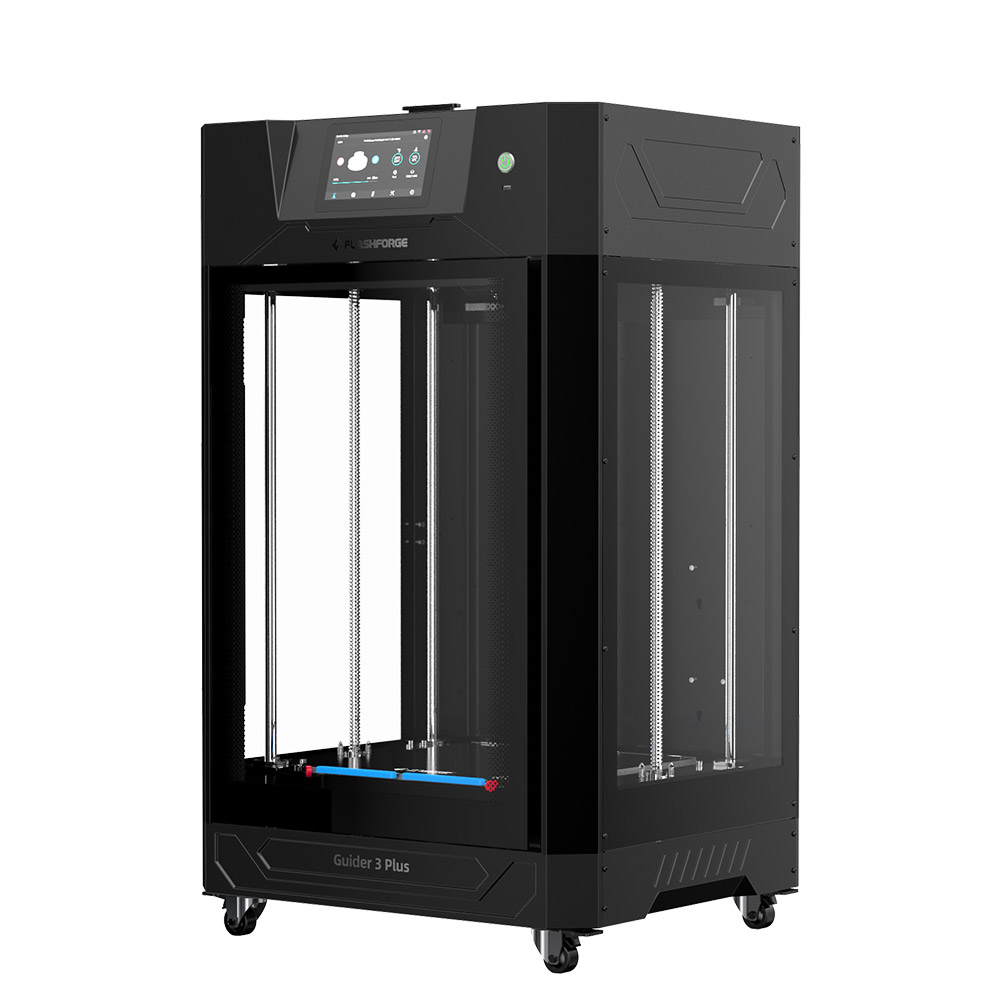

FlashForge Guider 3 Plus
With a flexible print bed, 320°C hotend and large volume for endless possibilities
Max. Resolution: 50 Mikron (0,05 mm) / Build volume 350 x 350 x 600mm / Single extruder: 0.4mm Nozzle / camera / WiFi, Ethernet, U-Dis, USB cable
- Manufacturer: Flashforge
- Manufacturer number: 10000768001
- EAN: 6937120301981
- Item number: 36879
- Availability: End of Life (EOL)
Large Volume and Unprecedented Stability for Endless Possibilities
Guider 3 Plus, an engineering grade 3D printer, supports the fast and stable printing of large-size and large-mass models, and meets the requirements of rapid prototype verification of multi-size parts with its newly designed internal structure.
Large space, expanding the boundaries
- 350 x 350 x 600 mm super-large build volume.
- Extra-long Z-axis height, meeting the printing requirements of most models.
- offering flexible printing of models of various sizes.
Efficient printing, accelerating R&D and design
- Satisfy most models printed in one day for delivery.
Fast, stable and accurate
- 16mm dual Z-axis TBI ball screws.
- The platform can support a maximum load bearing capacity of 30kg.
- It reduces vibration, realizes accurate positioning of printing each layer, and improves the stability of printing large-mass models.
- 24/7 continuous and stable operation.
Sealed Filament Drying Chamber
- Only 3 packs of desiccant can keep the humidity below 20% within 5 days.
- Equipped with a hygrometer to accurately monitor the ambient humidity.
Quick Model Removal
- Flexible and bendable platform for easy removal, reducing damage to models.
- No spring nut design, no adjustment required.
Flexible steel plate platform
The removable magnetic platform is easy to bend, which makes it easy to remove large models.
Quick Nozzle Change
- The nozzle can be quickly removed and replaced, without fear of clogging.
- Save maintenance time without affecting the whole printing process.
More features
Intelligent Maintenance Assistant
Equipped with a maintenance assistant for efficient maintenance on a 7-inch smart touch screen
Filament Detector Filament Run-out Reminder
Automatically detect the disconnection and pause printing
Power Loss Recovery
Avoid accidental power outages and ensure the printing process
HEPA 13 Air Filtration System
Filter dust, particles and odors, ensuring an environmentally-friendly and safe working environment
Auto Shutdown
Print at night, and pick it up during the day
Support a wide range of general and engineering filaments
- Extruder temperature up to 320℃
- PLA/ABS/HIPS/PC/TPE/PETG/ASA/PP/Nylon/Glass fiber reinforced/Carbon fiber reinforced filament
* Note: Glass fiber reinforced and carbon fiber reinforced filaments should be used with high-strength nozzles.
Compatible with third-party filaments e.g. Polymaker
Open third-party material configuration: The software synchronously configures multi-brand material data, which is convenient for customers to choose suitable filament by themselves.
Features: USB ports
Features: Webcam
Features: WiFi
Features: Ethernet
Model: Assembled
3d printer: Heatbed
3d printer: Single extruder
- Packaging Size (LxWxH)
775 x 690 x 1235 mm - Device (LxWxH):
635.5 x 590.5 x 1060 mm - Weight (net / gross):
70 kg / ** kg - Max. build volume (LxWxH):
350 x 350 x 600 mm - Layer:
0,05 - 0,4 mm - Nozzle:
0.4 mm
optional: 0.6 and 0.8 mm - Nozzle temperature:
max. 320℃ - Heatbed:
max. 120℃ - Printing speed:
10 - 250 mm/s - Filament diameter:
1,75mm - Materials:
PLA, PETG, ASA, ABS, PC, PA, PLA-CF, PETG-CF, PETG-GF, PA-CF, PA-GF - Connection:
WiFi, Ethernet, U-Disk, USB cable - Webcam:
yes - Software (incl.):
Flashprint - Compatible Software:
Slic3r, Skeinforge, Cura (Need to set up) - Files:
in: 3MF, STL, OBJ, FPP, BMP, PNG, JPG, JPEG
out: GX, G File, gcode - Compatible Operating System:
Windows, Mac, Linux
