BIGTREETECH CB1 V2.2 Compute Modul

The BIGTREETECH CB1 Compute Module is an alternative to the Raspberry Pi CM4.

The two Micro-BTB connections allow fast data transfer to the external hardware.
( inclusive Fast Ethernet (100 MBit) , HDMI, 2,4 GHz WLAN )

The CB1 module can be mounted directly on a BIQU Manta M4P / M5P or M8P motherboard, thus enabling the operation of Klipper.

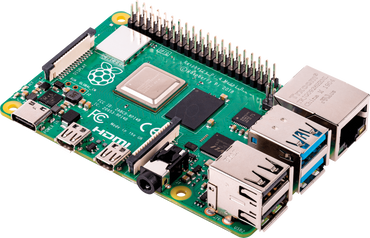

With the optional PI4B adapter, the CB1 can also be upgraded to a single-board computer with additional connections such as USB and HDMI / Ethernet.

Features:

• CPU: ALLWINNER H616, Quad-core Cortex-A53 @1.5GHz
• GPU: Mali G31 MP2, Support OpenGL3.2
• RAM: 1GB DDR3L SDRAM
• Display: Compatible with HDMI2.0A Interface, Support 4K Displays
• Compatible with USB2.0 Interface
• Support 100M Ethernet + 100M WiFi
• Having the same BTB header as the Raspberry Pi CM4.

Specifications

• Product Size: 40mm x 55mm
• Mounting Size: 33mm x 48mm
• Input Voltage: 5V ± 5%/2A
• Output Voltage: 3.3V ± 2%/100mA
• Output Voltage: 1.8V ± 2%/100mA
• WiFi: 2.4G/802.11 b/g/n

The Debian Linux for running Klipper and other possible uses is available for download at Github:

further information can be found here: https://github.com/bigtreetech/CB1
