BIQU BIGTREETECH ADXL345 V1.0 Accelerometer Board
BIGTREETECH ADXL345 Accelerometer Board V1.0 for 36 Stepper Motors 1 BIGTREETECH ADXL345 V1.0 2

BIGTREETECH ADXL345 V1.0 Accelerometer Board

for 36 Stepper Motors

12,90 € *
Inhalt 1 Stück
inkl. 19% MwSt. zzgl. 5,95 € Versand
12,90 € *
Inhalt 1 Stück

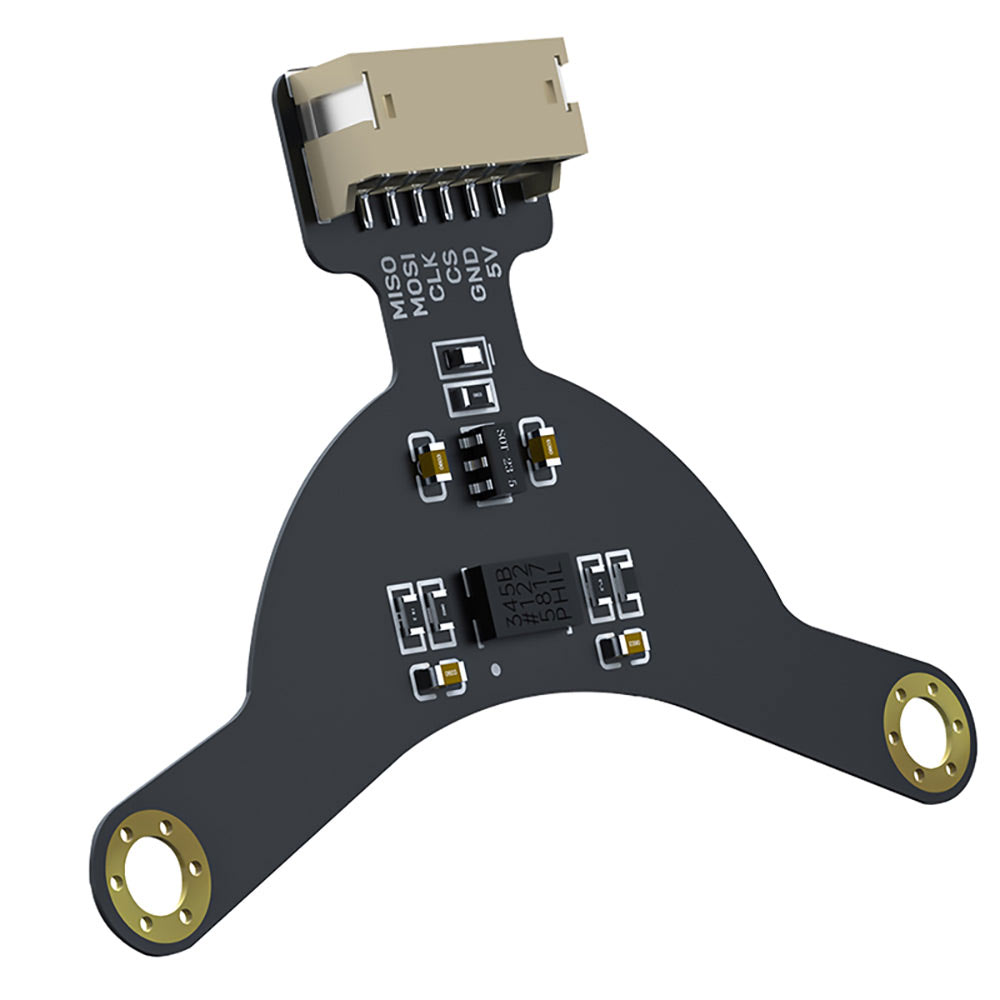

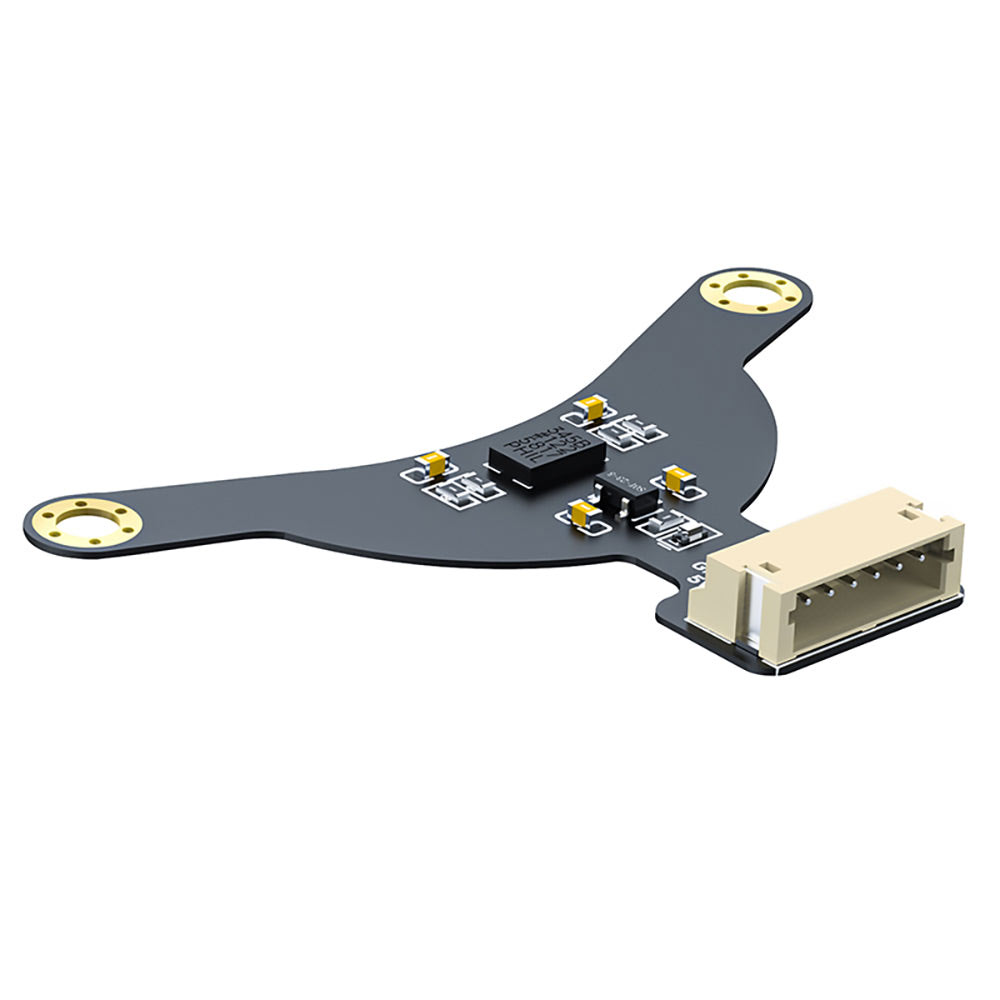

ADXL345 V1.0 is a nozzle three-axis accelerometer board for 36 stepper motor extruders.
It can be connected to the motherboard through the ZH1.5 6Pin socket.

ADXL 345 Accelerometer BoardFeatures

  • One end of ADXL345 V1.0 cable adopts ZH1.5 6Pin plug, and the other end adopts 2.54mm 6*1Pin DuPont head 70cm, which can be easily compatible with motherboards without ADXL345 socket, and the cable is 70cm, which is convenient for users to DIY.
  • It can be directly installed on the 36-stepper motor, which is convenient to fix.
  • Using SPI communication, it can be directly connected to the main board 5V power supply.
  • ADXL345 is a 3-axis accelerometer with an optional measurement range of ±2 g, ±4 g, ±8 g or ±16 g, 13-bit resolution.
    The ability to measure both dynamic accelerations due to motion or shock, as well as stationary acceleration, such as gravitational acceleration, allows the device to function as a tilt sensor.

Instructions Reference

https://www.klipper3d.org/Measuring_Resonances.html
The wiring in the link is directly connected to the Raspberry Pi.

Notice

  •  The ADXL345BCCZ three-axis accelerometer needs to have a stable installation plane, otherwise, it will affect its measurement accuracy.
  • Note that the board is powered by 5V, and 5V and GND cannot be reversely connected.
