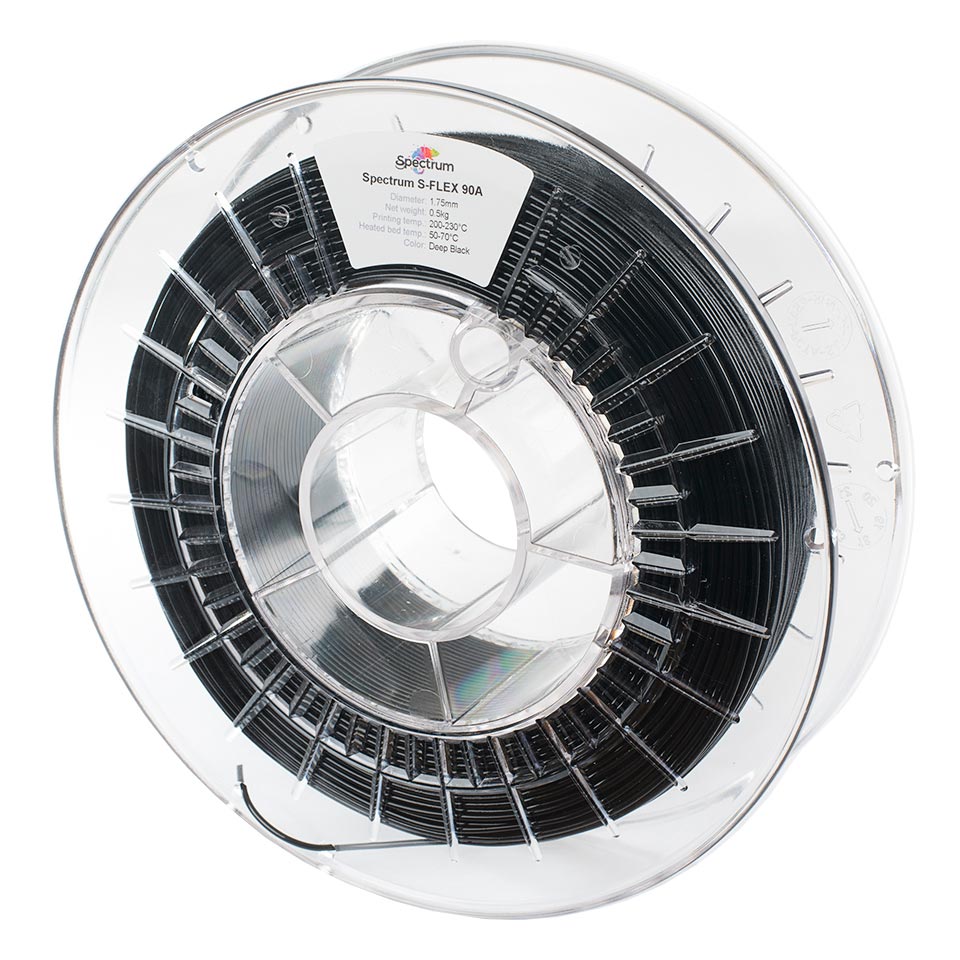

Spectrum Filaments Spectrum S-Flex 90A 1.75mm DEEP BLACK (RAL 9017) 0,5kg

Spectrum S-Flex 90A 1.75mm DEEP BLACK (RAL 9017) 0,5kg

Flexibilität mit einer guten UV-Beständigkeit und einer hohen Alterungsbeständigkeit

Shore-A-Härte von 90A / flexibles Filament / mit 1.75mm / viele Farben verfügbar

€ 29.90 *
Content 0,5 kilogram
Unit price €59.80 / kilogram
incl. 19% VAT excl. 4,95 € shipping
€ 29.90 *
Content 0,5 kilogram
Unit price €59.80 / kilogram
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/6mi3i5bhx3zt/plugin/20/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "Ae8FP9bvO1ufpUzfp9DkpRunNIaBm4zpOJXMB11Cdgixzu41pACZKItTmATFBiWch9Gg9glr0xQ4P5jq"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiMmRlNTQ2ZTE0OWY0YTgzYzFlNWNkNzczOTE2ZTkzZDBlZjM2YzQyNjY4MTQ2MThiY2M3ZDM4YjUzMjI4MWI5NXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDUtMjhUMDA6MTc6MjAuNDA1WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBuRWVHYnVCUnJyRmdIdlUyOEd6ZmhjNnQxVERzMmprck9RTWtWeV9uLWk1OXN6S1FZcFdpRUZ4MlJWSy13THNSb0owc2RERDdQZTZONDhhNy1nNUM1ZFRNd19BIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }

Where durability and flexibility are essential

Spectrum S-Flex 90A is a filament designed for 3D printing, which enables you to manufacture flexible items in a much simpler way than with other materials of this type. The appropriate composition of the material provides for good adhesion both between layers and between the printed item and the build platform.
Due to the resistance to hydrocarbons and good lamination between layers, S-Flex 90A allows manufacturing of sealing items which need to be resistant to any operating fluid ensuring the best tightness possible. Parts made of this material can be used as energy absorbers, i.e., all kinds of bumpers or vibration dampers.

In addition to the above-mentioned properties, S-Flex 90A material is also characterized by good resistance to UV radiation and high resistance to aging. Flexible filament S-Flex 90A shows resistance to weak and diluted acids and bases.

Key features:

  • very good wear and tear resistance
  • up to 500% elongation at break
  • Shore-A hardness of 90
  • resistance to many common industrial oils and chemicals
  • low shrinkage
  • high quality surface
  • reduced stringing while the printer is running idle
  • stability of shape and material properties in the temperature range -30 to + 60°C

Applications:

  • manufacturing of seals with a high chemical resistance
  • production of items, which has to be used as energy adsorbents
  • functional parts
  • all kinds of bumpers, vibration dampers
  • guides
  • protective cases
  • snap-fit parts
  • sleeves
  • hinges

VERIFY YOUR SPOOL - the most precise quality control system on  the market

Filament for 3D printers is manufactured by the method of free extrusion, which is one of the most difficult processing techniques by extrusion, due to the particularly significant impact of process parameters on product dimensions and material homogenization.

During the production each 1mm of Spectrum Filament is being continuously measured in 2 axes with ±0.8µm accuracy, which allow obtaining a high-quality final product. To prove this, Spectrum Filaments, as one of the few manufacturers in the world, has introduced the possibility of online presentation, individually for each manufactured spool:

  • the course of diameter on the entire length of the spool,
  • mean diameter,
  • ovality,
  • standard deviation.

Precise survey guarantees that Spectrum Filaments products meet rigorous market requirements.


  • Material
    Spectrum S-Flex 90A
  • Drucktemperatur
    200 - 230 °C
  • Heizbett
    50 - 70 °C
  • Druckbettbeschichtung
    nicht erforderlich, aber Magigoo und BuildTak empfohlen
  • Filament Durchmesser
    1,75 mm
  • Filament Nettogewicht
    250 g / 500 g
  • Verpackungsgewicht
    460 g / 900 g
  • Lagerung
    trocken und kühl
