ElogioAM ElogioAM Facilan HT 1,75mm 750g
 1  2  3

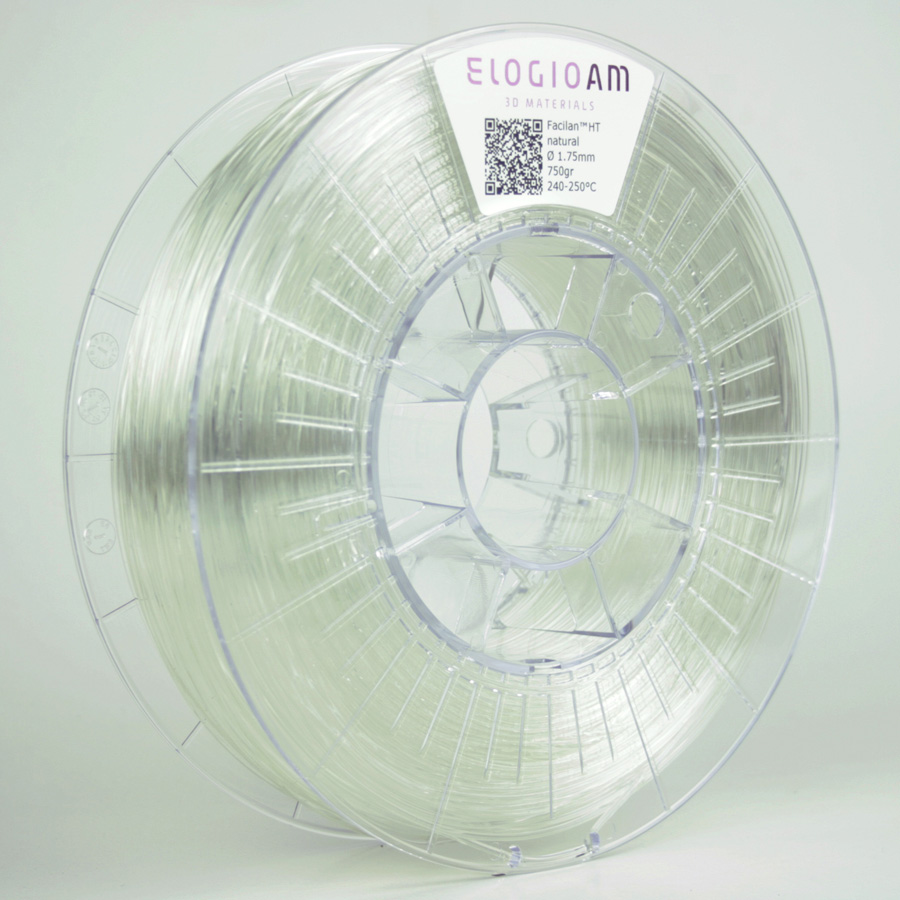

ElogioAM Facilan HT 1,75mm 750g

High gloss, with higher tensile strength than PETG and ABS

Facilan HT / 1,75mm and 2,85mm / 750g

Facilanâ„¢ HT is an amorphous copolyester with a high glass transition temperature.

  • Copolyesters with high temperature resistance (100 °C), superior to PETG and PLA
  • High tensile strength, better than PETG and ABS
  • High gloss
  • Based on food-contact materials (USA, EU, Japan) and raw materials that comply with Directive 2009/548/EC on toy safety

For serious 3D printing production, certain material requirements are necessary:

These include temperature resistance, stability, and strength for long-term use in various environments and under different conditions.

Therefore, Facilan HT is based on a new generation of co-polyester that addresses the current limitations of polyesters such as PLA and PETG. The filament produces high-gloss printed parts for durable applications.

Facilan HT also boasts high transparency.

Thanks to the superior heat resistance of Facilan HT, more durable applications for heat-sensitive objects are possible.

Its high strength allows for optimized 3D designs with low infill density for faster print jobs and thin walls with high part stiffness.

This filament is based on raw materials approved for food contact (US, EU, Japan).

The raw materials used comply with the Toy Safety Directive 2009/548/EC.

Tensile strength and heat resistance of Facilan HT vs. PLA/PETG/ABS

Comparison

  • bed temperature:
    75-85 ° C
  • adhesion
    PEI sheets / glass
  • printing temperature:
    240 bis 250 ° C
  • print speed:
    40 - 75 mm/s



  • Dichte:
    1,3 g/cm³
  • Zugfestigkeit:
    62 MPa
  • Zugdehnung:
    7%
  • Zugmodul:
    2100 MPa
  • IZOD-Schlagfestigkeit (gekerbt):
    3 kJ/m2
  • Shore-D-Härte:
    76
  • Wärmeformbeständigkeit (0,45 MPa):
    89 °C

Download: Sicherheitsdatenblatt (DE)
