Shining3D 3D Scanner Shining3D Einstar
1 2 3 4 5 6 7

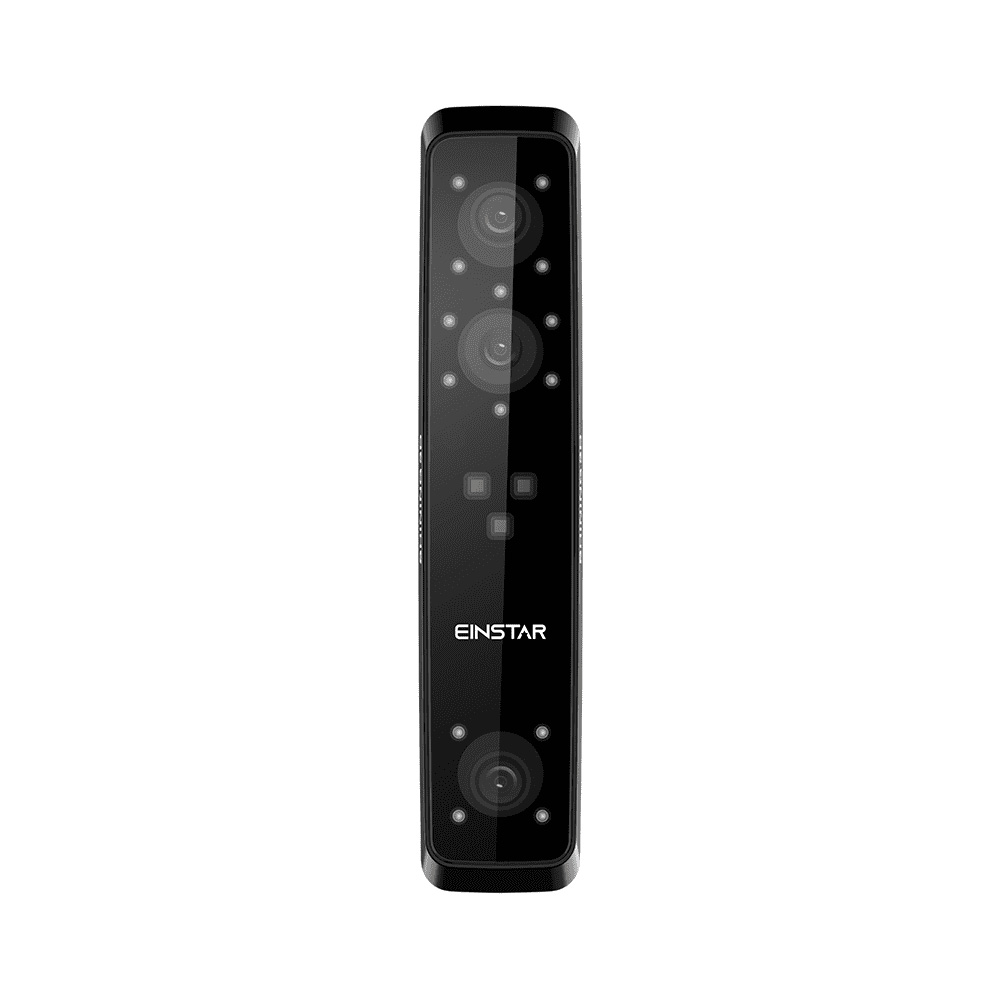

3D Scanner Shining3D Einstar

Shining3D Handheld 3D scanner

Structed light 3D-Scanner / Point Distance: 0,1 - 3,0 mm / Texture Scan / indoor + outddor / .stl, .obj, .ply, .p3, .3mf

Any questions about this article? More articles in this category
€ 989.00 *
Content 1 piece
incl. 19% VAT and free shipping
€ 989.00 *
Content 1 piece
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/6mi3i5bhx3zt/plugin/20/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "Ae8FP9bvO1ufpUzfp9DkpRunNIaBm4zpOJXMB11Cdgixzu41pACZKItTmATFBiWch9Gg9glr0xQ4P5jq"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiZWQ2YTFlNTJkZGU1YWM3OTc1ZTU0MThmZjg1ODI4ZDFiNTdhZTRmMTFiNTJjNjEzMTZmYjRkYzljMzUwNGVkOHxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDQtMjhUMDQ6MTk6MjUuNDM0WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQVBmdVpiOWxUT2s0Y0FfaW5VMndqU0lXeHkxcnFfTTdhR21tMDB0VUxxY090eU1HcDdJVENzd2tRTHVWYzhLYnFmZE5VNzF2SW1BZmo4eHh0TEstRE5iN0JuZExnIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }

EINSTAR, an affordable handheld 3D scanner, makes high-quality 3D data available to everyone. In the standard package you will find a handheld 3D scanner with Exstar software, and a lightweight carrying case which includes a series of accessories: a silicone case, introductory user guide, positioning markers, cloth to wipe the lens, a carrying strap, power supply and USB cab...

Main features of EINSTAR include:

1.Great variety of application scenarios
Thanks to multiple data output formats, EINSTAR is the ideal companion for 3D scanning jobs in a wide range of projects and industries. No matter for 3D printing, Design, VR&AR or something completely different: EINSTAR´s versatility unlocks new dimensions of ideas and creativity.

2.High-quality Data
EINSTAR collects high density point cloud data fast and easily with point distance up to 0.1mm.

3.High Color Fidelity
Benefit from built-in RGB color camera, EINSTAR reproduces the original colors of the scanned objects authentically.

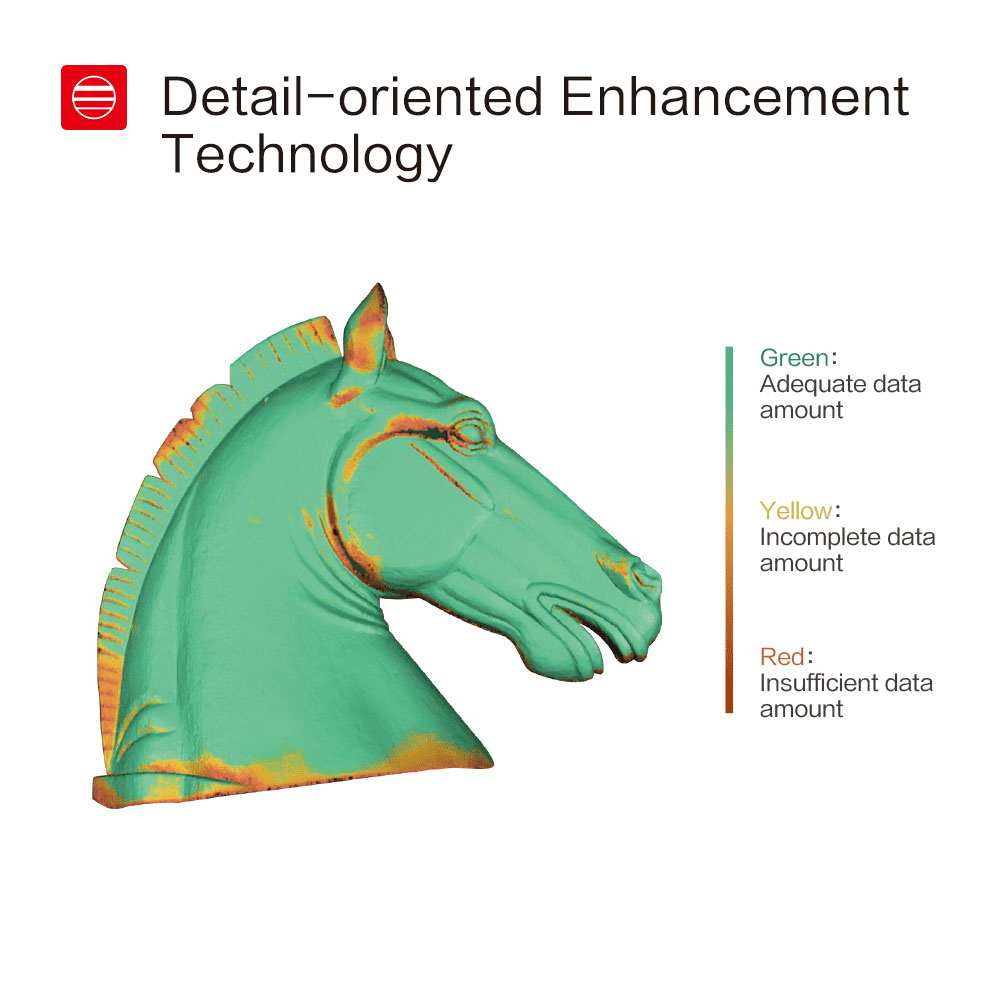

4.Detail-oriented Enhancement Technology
The built-in detail enhancement technology optimizes the point cloud for complete data acquisition, better guides your scanning and improve the data quality.

5.Stable Outdoor Scanning
With 3 infrared VCSEL projectors, Einstar can capture clear scan data and generate stable outputs outdoor.

6.Comfortable for Eyes
Because of invisible light of projector during scanning process, it makes eyes comfortable when do human scan.

7.Streamlined User Experience
A smooth and fast scanning experience with helpful features and high scanning speed.

8.Extremely Easy to Use
Ergonomic design, clear workflow, easy set-up, plug and play.

Einstar 3D-Scanner Video

Examples

Vase [Einstar] by SHINING 3D on Sketchfab

Pineapple [Einstar] by SHINING 3D on Sketchfab

Horse head [Einstar] by SHINING 3D on Sketchfab

Painted Lion [Einstar] by SHINING 3D on Sketchfab

* Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
* Global Markers alignment is only available in Object Scan Mode

  • Scan Mode Structed
    Structed Light Scan
  • Point Distance
    0.1 mm ~ 3 mm
  • Light Source
    Infrared VCSEL structured light
  • Working Distance
    Effective Working Distance: 160mm-1400mm;
    Optimal Working Distance: 400mm
  • Depth of Field
    160-1400mm
  • Maximum FOV
    434mm x 379mm (under optimal work distance)
  • Scan Speed
    980,000points/s, up to 14FPS
  • Align Modes
    Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
  • Safety
    Eye-safe
  • Texture Scan
    Yes
  • Outdoor Scanning
    Yes
  • Interface
    USB2.0 or above
  • Output Formats
    OBJ; STL; PLY; P3; 3MF
  • Scanner Size
    220mm x 46mm x 55mm
  • Carrying Case Size
    245mm x 245mm x 90mm
  • Scanner Body Weight
    500g
  • Operating Temperature Range
    0-40℃
  • Operating Humidity Range
    10-90%
  • Certifications
    CE, FCC, ROHS, WEEE, KC
  • Recommended Configuration
    OS: Win10/11, 64 bit;
    Graphics card: NVIDIA GTX1060;
    Video memory: ≥6GB;
    Processor: i7-11800H;
    Memory: ≥32GB
  • Basic Computer Configuration
    OS: Win10, 64 bit;
    Graphics card: NVIDIA GTX1050;
    Video memory: ≥4GB;
    Processor: i7-7700H;
    Memory: ≥16GB



* Einstar infrared light source, certificated as Class 1 laser product, is safe under all conditions of normal use.
* Global Markers alignment is only available in Object Scan Mode

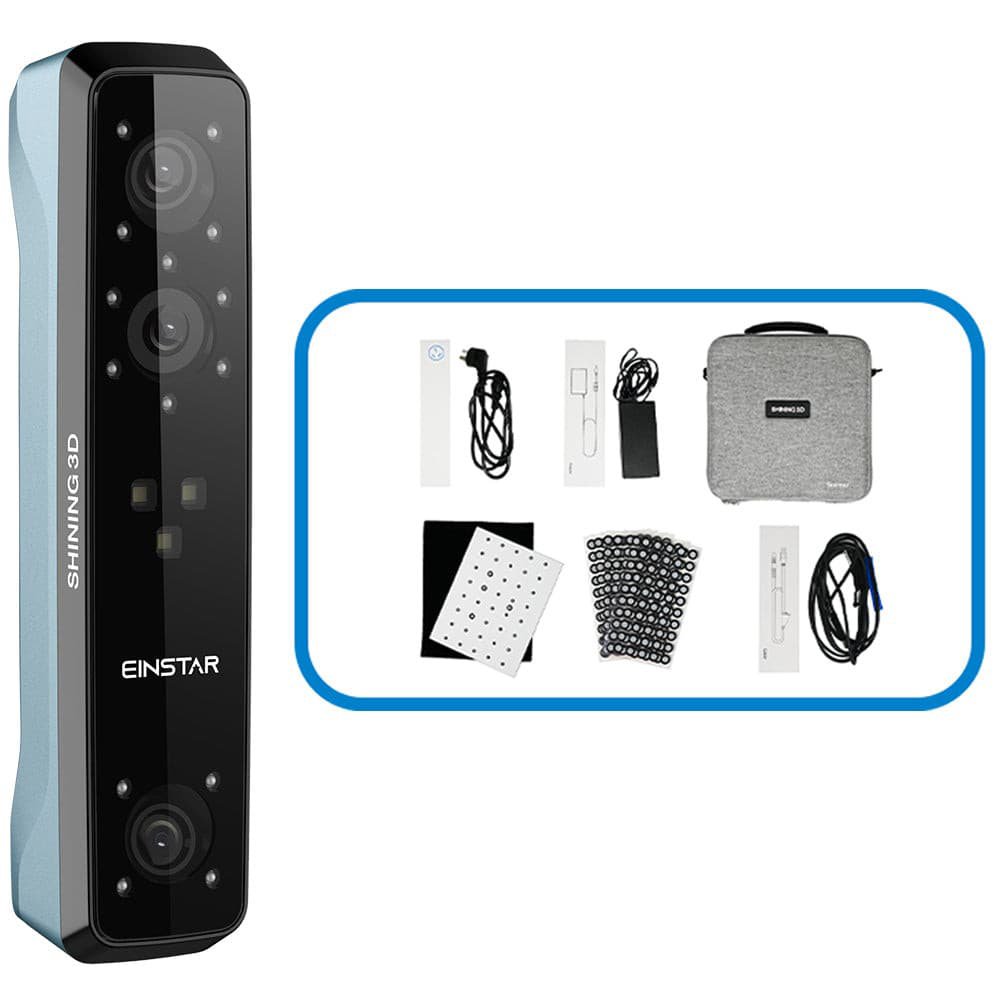

  • 1x SHINING EinStar 3D-Scanner
  • 1x Case
  • 1x Netzteil
  • 1x Kalibrierplatte
  • 1x Handschlaufe
Data sheet: 3D Scanner Shining3D Einstar (.pdf)

How to Calibrate your Einstar

Einstar scanning tips: Turntable&Tripod
