Scan Dimension 3D Scanner Scan Dimension SOL Pro
1 2 3 4 5 6

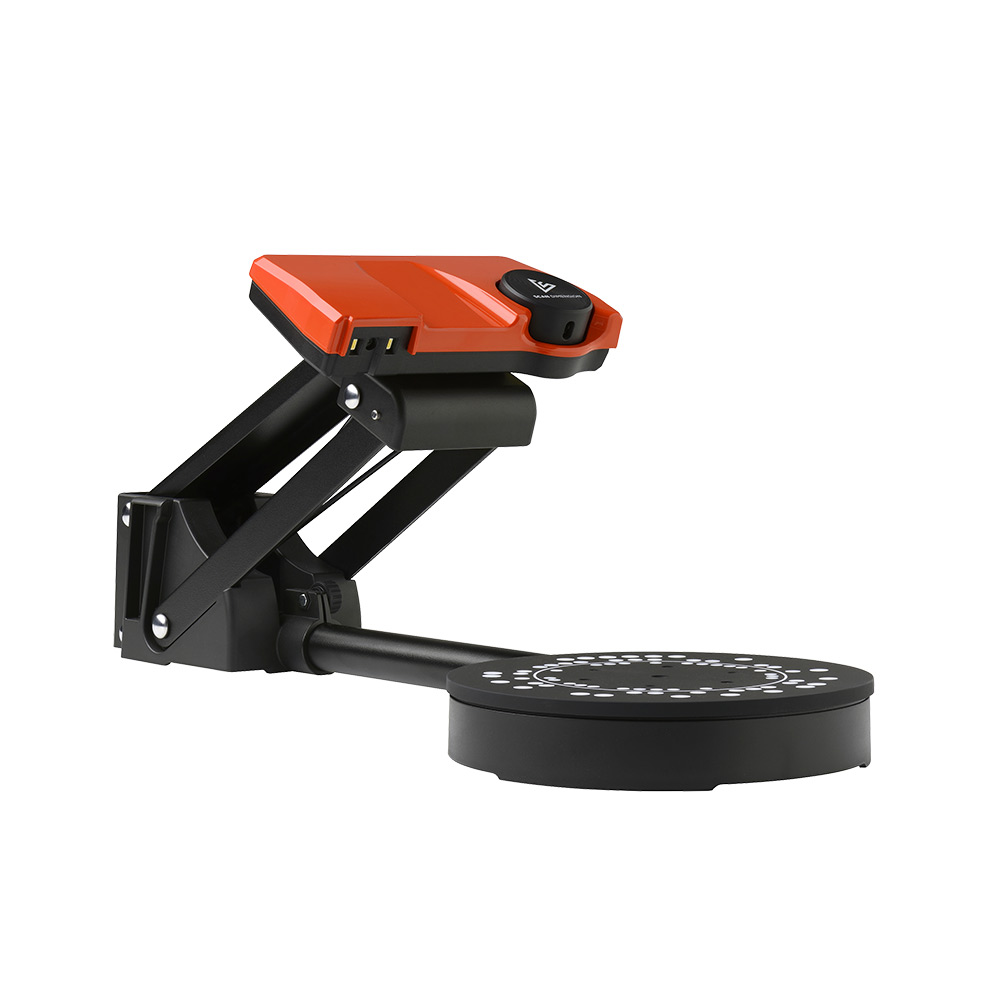

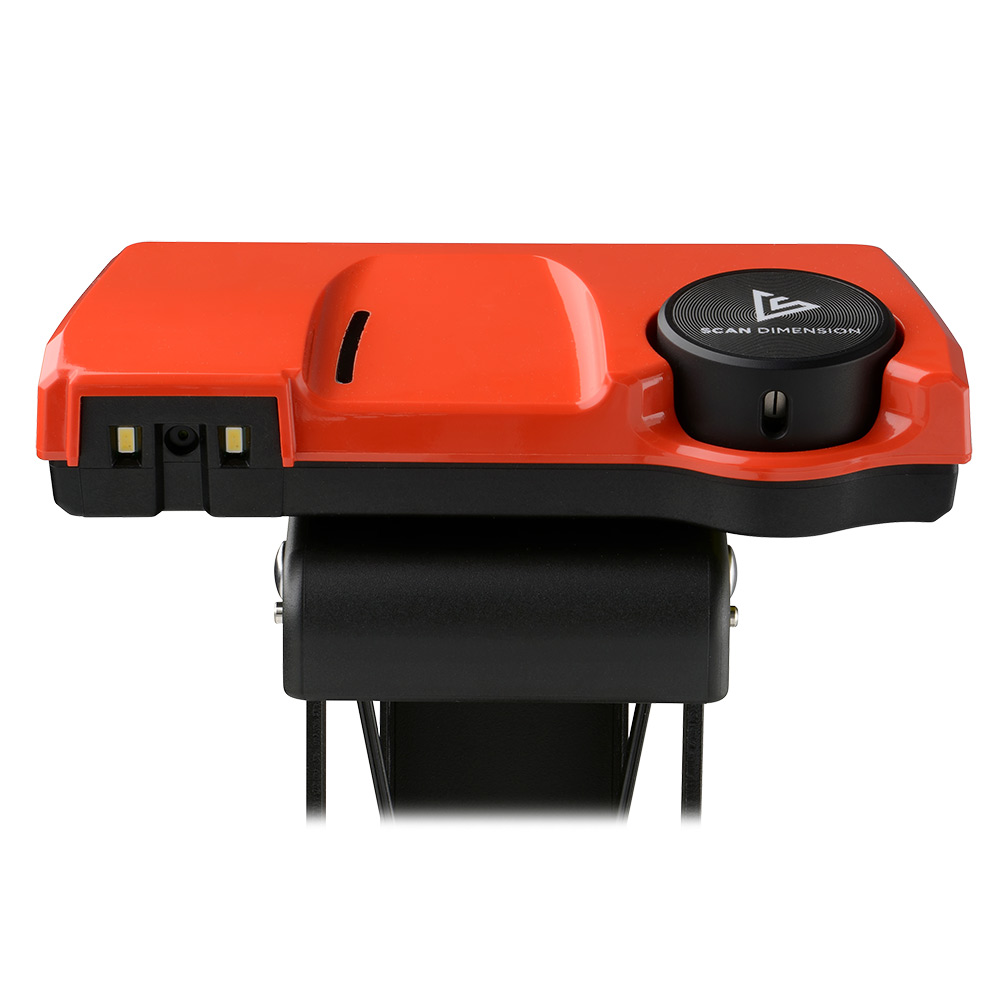

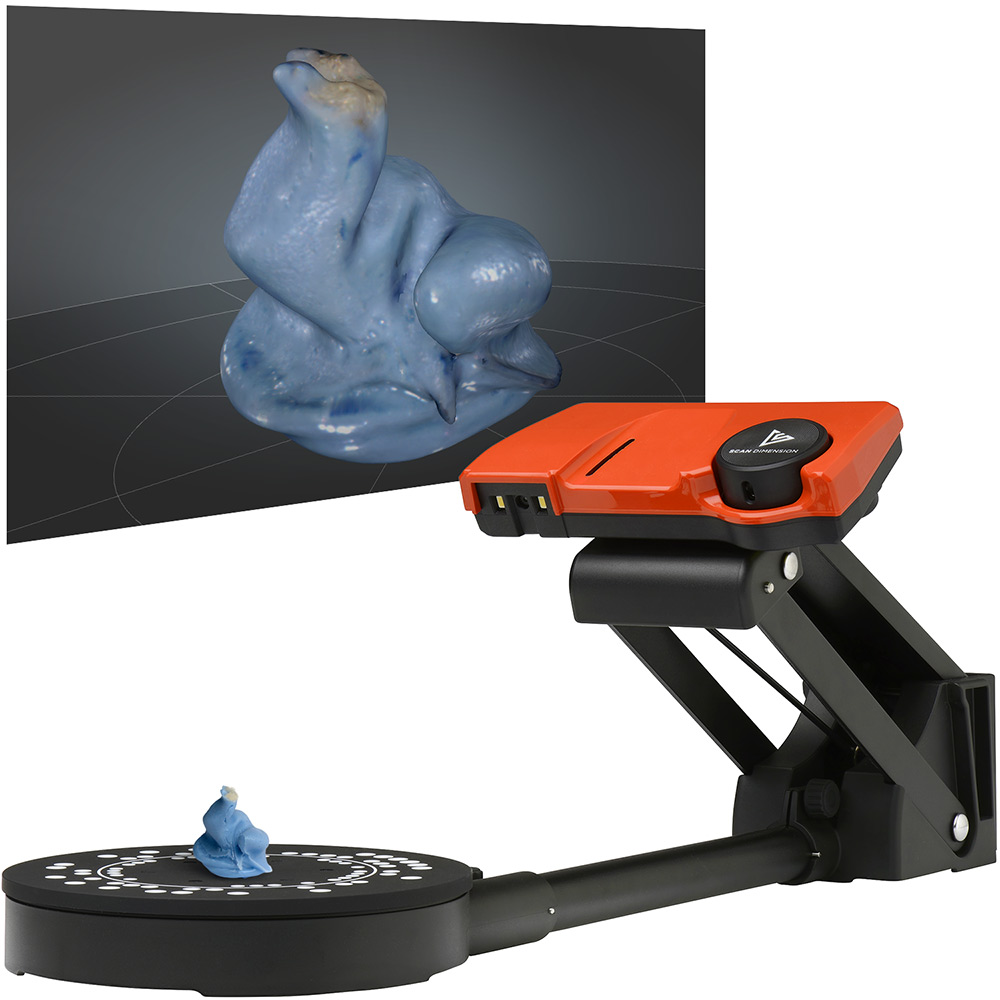

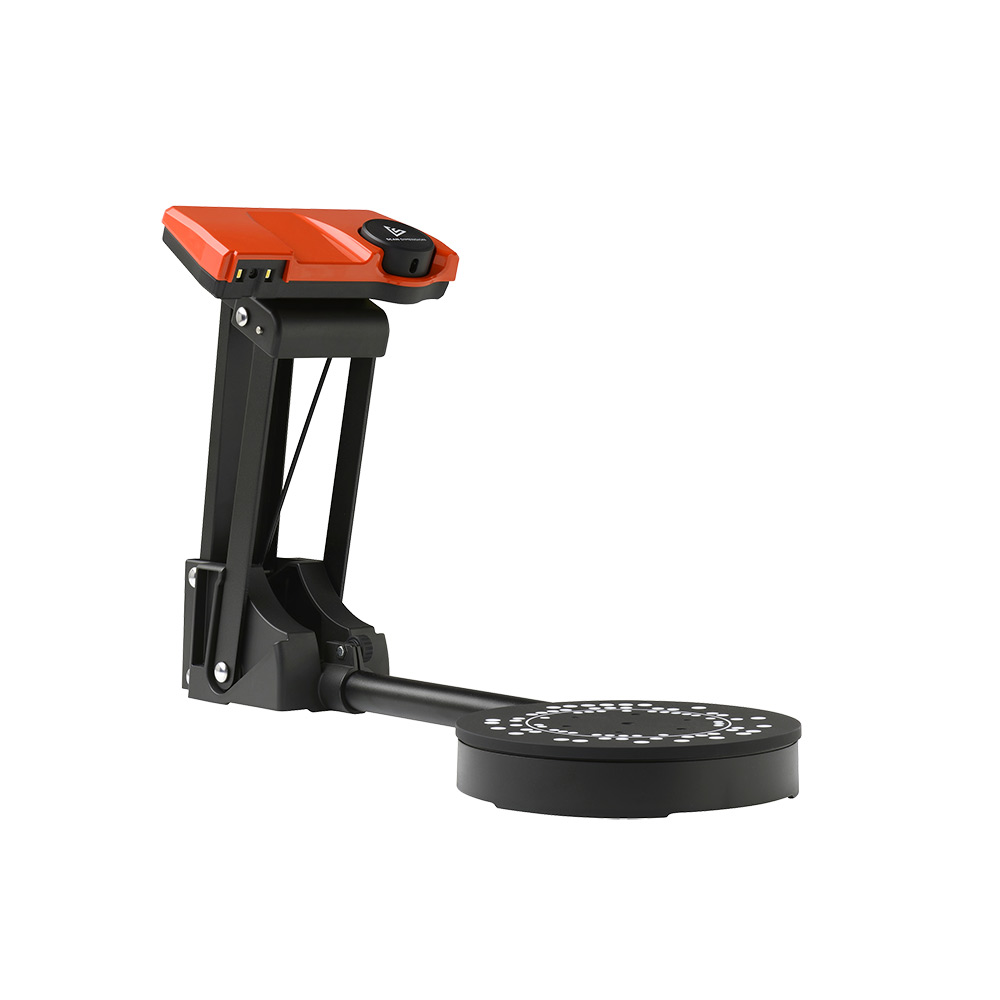

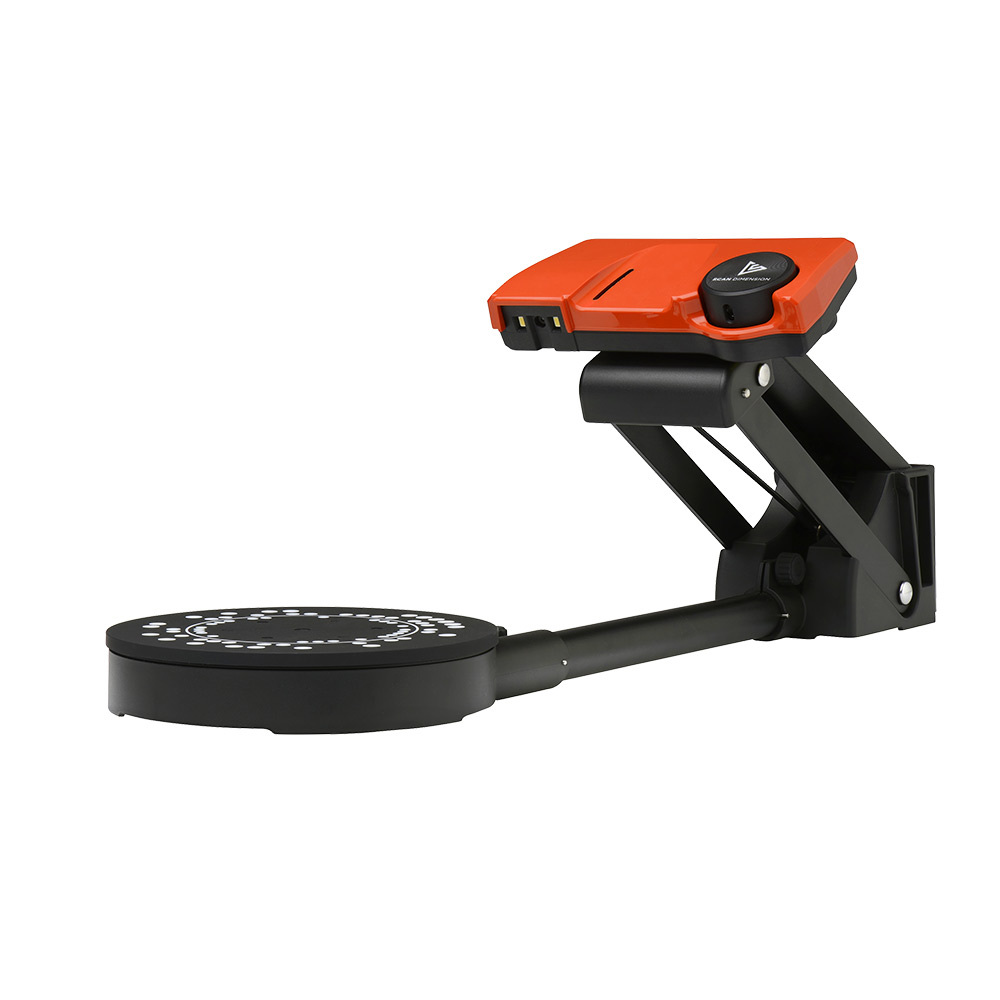

3D Scanner Scan Dimension SOL Pro

Inspection scanner: Use 3D scans for quality inspection with modern measurement functions.

True laser space conversion and white light / for industry, education and hobby / max scan size 170 x 170 mm / min scan size 20 x 20 mm / Max accuracy: 0.05 mm / including turntable for objects up to 2kg

Any questions about this article? More articles in this category
€ 1,429.00 *
Content 1 piece
incl. 19% VAT and free shipping
€ 1,429.00 *
Content 1 piece
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn02.plentymarkets.com/6mi3i5bhx3zt/plugin/20/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "Ae8FP9bvO1ufpUzfp9DkpRunNIaBm4zpOJXMB11Cdgixzu41pACZKItTmATFBiWch9Gg9glr0xQ4P5jq"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiN2Y0Y2RiOWQxNWNiZGY4NTI1NGUxMTMxZTk3NmI4YzA0YWM0NDAyNmRjMWZmNzQxZTI0ZmZhMzlhYjgwMWVjZnxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjQtMDUtMDlUMDk6NDE6MDcuOTYyWiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU5XWEhveGtjUmh1VEd1SzlHZ01BR2xxV0MwcU5hdzcyMEdBbm1EMW4tellPY3hSRFpvN0xNNnlLN2ctQUU4TVFJMnptLVB5NmYxMFVTYXc1VFJOV3lKaDlMVGdBIn19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }

Inspect volume, surface area, shape, size and texture with ease with a metrology-grade accuracy of up to 0.05 mm (50 microns).

SOL PRO is one of the most accurate 3D desktop scanners on the market. It integrates seamlessly into your 3D workflow where the scanner’s precision and quality makes it a perfect partner for your quality assurance, product inspection, prototyping or 3D printing tasks.

SOL PRO is small and lightweight, and the included software with highly automated calibration and meshing processes delivers 3D models with no need for manual alignment or removing of unwanted artifacts.

What you can do with your 3D scans

  • Inspektion
  • 3D modeling
  • 3D printing
  • Sharing

THE POWER OF 3D SCANNING WITH SOL PRO

Showcase

SOL PRO 3D scanner scans objects between 20 and 170 mm in diameter and height.

Hardware

Please check the hardware requirements before purchasing, see the "Technical Data" tab (including Octa-Core CPU and 32RG RAM).

  • Scan Technologies
    True laser space conversion and white light
  • Camera resolution
    8 MP
  • Object size
    20 – 170 mm (0.8 – 6.7 in) in height and diameter
  • Scan-Feld
    -
  • Scan-Distanz
    -
  • Max accuracy
    up to 0,05 mm
  • APoint distance
    > 0,26 mm
  • Texture and Color
    yes, Color in HDR quality
  • Interface
    HDMI, USB 3.0, USB 2.0 for Turntable
  • Turntable
    inclusive, max. 2kg
  • Dimension
    - Tent dimension : 62×35×32 cm
    - Box dimension: 42×16×31 cm
  • Weight (Complete package with case)
    ca. 5.5 kg
  • Export file types
    STL, OBJ, PLY, DAE, XYZ
  • Software
    inclusive
    Languages: English, German, French, Italian, Spanish, Russian, Japanese, and Simplified Chinese
  • Supported operating systems
    Windows 11 and 10 64-bit (x64)
    Note: Microsoft SQ and Apple M1 ARM CPU’s are not supported
  • Recommended hardware
    - Graphics card  min. 2 GB memory, Must support OpenGL 3.3 or higher, Support for OpenCL 1.2 or higher is recommended
    - 8 cores (16 logical processors) with 2.8 GHz processor or higher
    - min. 32 GB RAM
    - 100 GB free disk space (system drive)
    - USB 3.0 port (maximum 800 mA) or powered USB 3.0 hub
  • Internet
  • Required to access calibration data
  • SOL PRO 3D-Scanner
  • Drehteller/Drehscheibe
  • Scanner-Ständer
  • USB 3.0 Kabel
  • Verdunkelungszelt

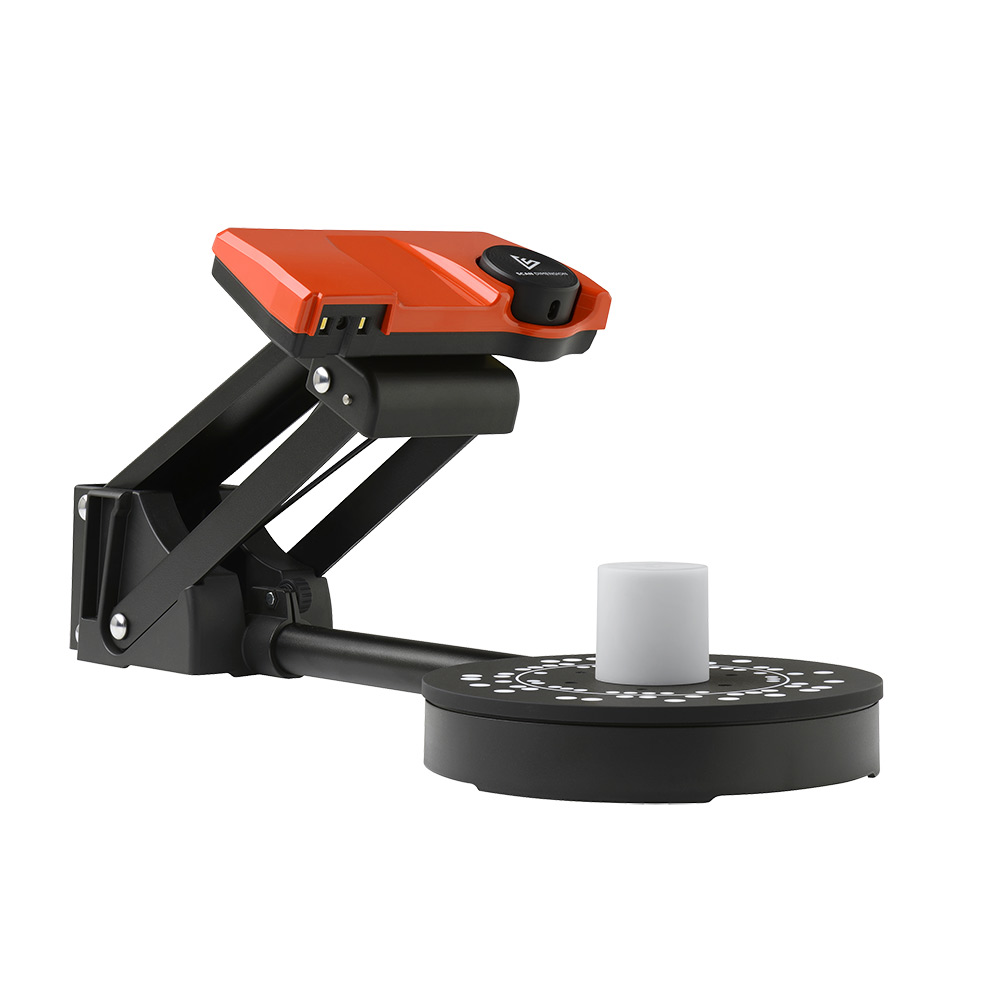

  • Zylindrische Zielscheibe für hochgenaue Profilierung
  • Software zum Herunterladen:
    SOL Creator und SOL Viewer
  • Einfacher Upload zu Sketchfab
  • Herstellergarantie
Datenblatt (DE) Datenblatt (EN) Datenblatt (FR) Datenblatt (IT) Datenblatt (ES) Vergleich SOL & SOL PRO (EN)
